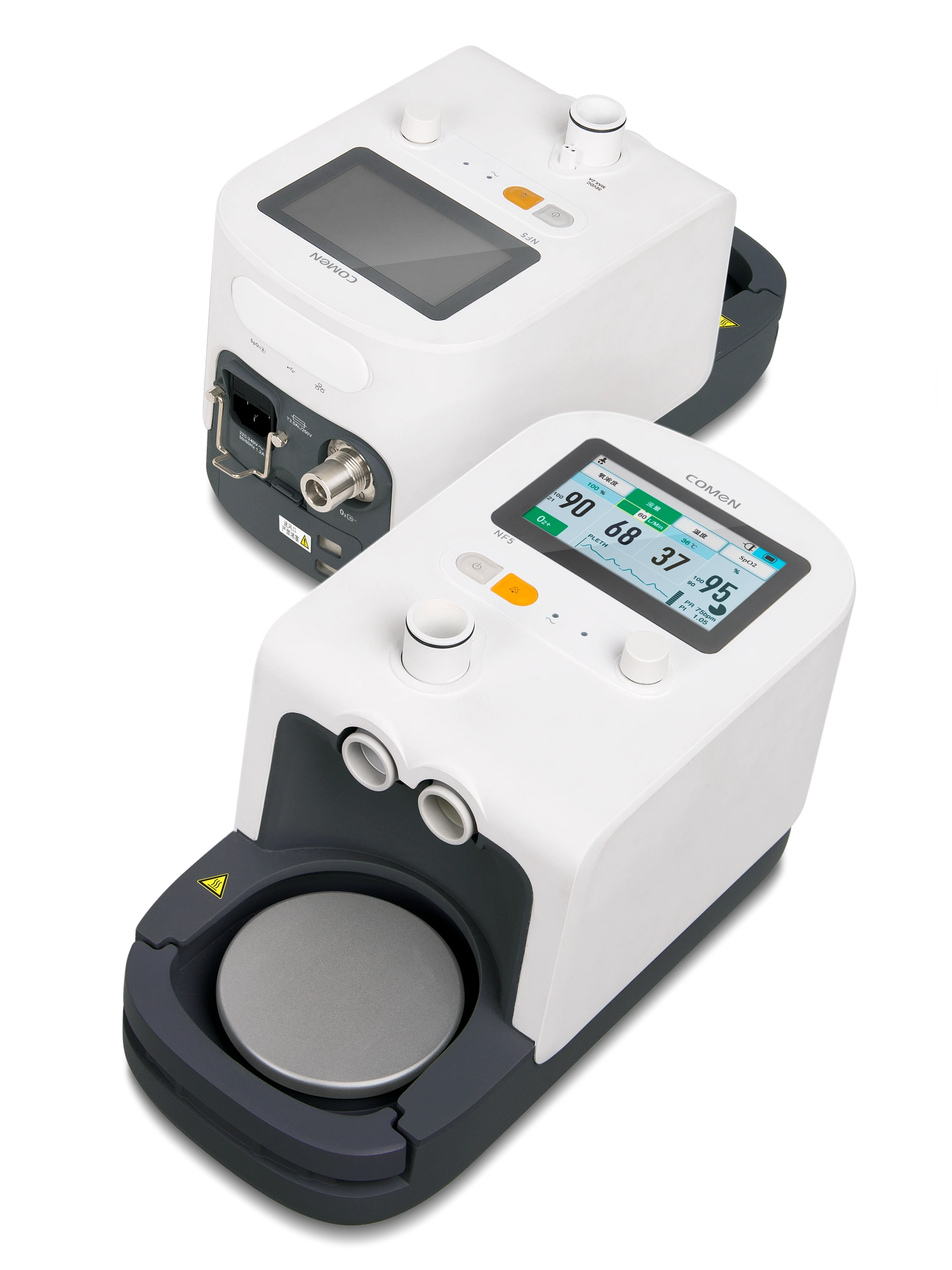

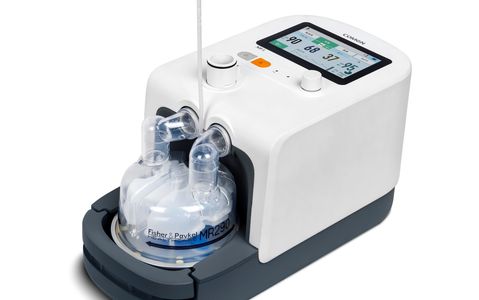

Comen nf5 high flow heated Respiratory Humidifier
Novel Coronavirus Pneumonia (NCP) is a pneumonia caused by SARS- CoV- 2 infection. Severe and critically ill patients often have hypoxemia and dyspnea and proper respiratory support treatment is required. High-flow nasal O2 therapy (HFNC), like Comen Respiratory, has greater advantages over conventional O2 therapy.
clinical Applications
- Mild respiratory distress (respiratory rate >24 bpm)
- ARDS and other Type I Respiratory Failure (100 mmHg ≤ PaO2 /FiO 2 < 300 mmHg)
- Type II Respiratory Failure
- Invasive Ventilation Weaning
Functions & benefits
Simple and Practical
Simple and Practical
Simple and Practical
- Ultra-Large TouchScreen: NF5 is equipped with a 4.3- inch touch screen, which allows easy and quick operation by touch and navigation knob.
- Electronic Air: O 2 mixer system: easy to set up flow rate and O2 concentration.
- Intuitive UI Design: large font, easy for caregiver to operate and observe.
Safe and Comfortable
Simple and Practical
Simple and Practical
- Multi-Position Temp Monitoring: NF5 is equipped with 3 temp sensors, which enable real-time temp monitoring, synchronized closed- loop feedback, joint high temp alarm, smart water level management and over- temp protection function to ensure safer heating.
- High-Performance Nasal Cannula: ergonomic design, soft and comfortable, free of constriction.
- Ultra-Quiet Design: The ultra-quiet turbine significantly reduces noise, provides a quiet O 2 therapy environment, reduces irritability.
SpO2 Monitoring
Intra-Hospital Transport
Intra-Hospital Transport
- Optional Comen, Masimo or Nellcor SpO 2 monitoring function, real- time monitoring of the patient's O2 concentration, ease evaluation of the effectiveness of high- flow O 2 therapy, so that doctors can optimize the treatment plan in real time.
Intra-Hospital Transport
Intra-Hospital Transport
Intra-Hospital Transport
- High performance turbine, no need for compressed air supply
- Integrated battery for transportation

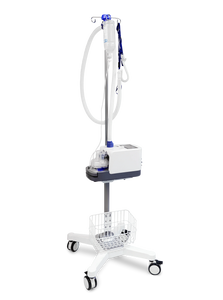

- Light and compact medical trolley ease intra- hospital transport
